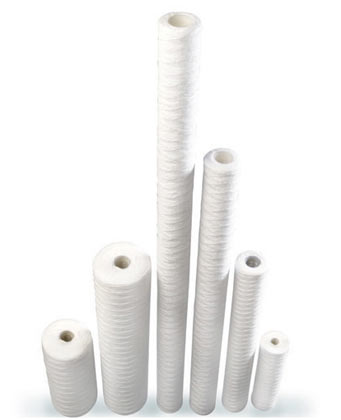

WOUND FILTER CARTRIDGE

Filter Concept Pvt. Ltd. is one of the leading Wound filter cartridges exporters. Wound cartridges are designed to meet the most demanding filtration duties. Wound filter cartridges offer an economic, compact, easily installed and maintained filtration system for removal of particulates from liquid. These type filter cartridges are manufactured from a variety of carefully selected raw materials. These are processed into fibers of specific grades using the latest technology. After carding & spinning into roving they are wound into cartridges with carefully controlled micron rating. From raw materials to finished products we are in control of the quality and filtration characteristics. They are appreciated due to high dirt holding capacity and its rugged construction which allows facing different applications in liquid and gas filtration.

Operation

Unfiltered fluid passes through depth filter matrix, which enables the progressive retention of finer particles, providing high efficiency, high dirt retention & long filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.

» Standard and customized sizes to fit most housings
» Filtration rating from 1 to 100 Micron
» High strength & pressure resistance
» Manufactured in continuous length
» Full range of sizes from 10” to 60” Length
» Excellent flow with low pressure drop
» High dirt holding capacity
» Compatible with a wide range of fluids
» NSF & FDA approved filter cartridges are available.

Construction

» Polypropylene with polypropylene core

» Cotton with stainless steel core

» Glass fiber with stainless steel core

Configuration

» Double Open Type (DOE Type)

» 226 O'Ring design

» 222 O'Ring Design

Sizes

10”, 20”, 30”, 40”, 50”, 60” Long

Micron Rating

1, 5, 10, 25, 50, 75, 100

Outer Diameter

64 mm(2.5”) 100 mm(4”), 110mm(4.5”) 6”, 8”

Inner Diameter

25mm

We have wide expertise and knowledge in the manufacture and export of world-class industrial filters & filter consumables like wound filter cartridges Specialized in application analysis.Our endeavours in this field is backed by a strong R & D support and our own vast experience in dealing with the OEM & End Customer in the various industries like Oil & Gas, Petrochemicals, Power, Steel, Chemicals, Pharmaceuticals, Fertilizers, Dyes & Intermediates, Paint & Ink, Water Treatment etc.

Polypropylene Wound Filter Cartridge

» Organic Acids

» Oils

» Water

» Concentrated Alkalis

» Organic solvents

» Electroplating solution

» Photographical process fluid

Cotton wound filter cartridge

» Vegetable Oils

» Dilute Acids

» Alkalis

» Organic solvents

» Portable liquids

Glass fiber Wound Filter Cartridge

» High temperature filtration of Mineral Acids, Organic solvents, Oils
