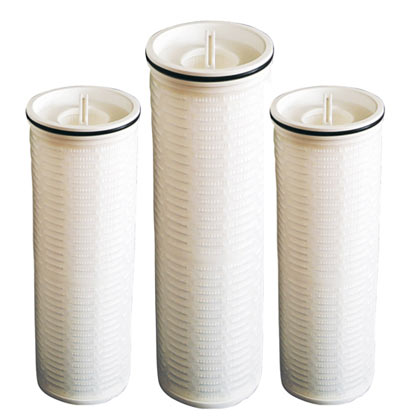

PP PLEATED & GLASS FIBER FILTER CARTRIDGES

Filter Concept Pvt. Ltd. is one of the leading PP Pleated and glass fiber cartridges exporters. PP Pleated and glass fiber cartridges are designed for higher filtration area & high throughput .It has 6 inch/152mm large diameter, and is coreless, single open-ended structure with an inside to outside flow pattern. Due to its large diameter with big filter area, it requires lesser elements for a given flow rate than standard cartridges diameter, due to lesser elements Filter vessels ‘s size workout smaller, resulting in lower capital Investment and installation costs, as well as reduced operating costs.

Construction

» Filter Media : Pleated glass fiber, Pleated depth Polypropylene(PP)

» Support / Drainage : Polypropylene(PP)

» End Cap : Glass fiber reinforced Polypropylene

» O-Ring Seal : EPDM, NBR

» Easy to dispose due to its unique coreless design
» Minimize overall size of filter housing due to its high throughput
» Absolute rated filtration efficiency

Sizes

20.69 inch(525mm), 40.69 inch(1033mm), 60.69 inch(1541mm)

Micron Rating

1, 4.5, 6, 10,20,40,70,100 Microns

Outer Diameter

6 inch(152mm)

OPERATING CONDITIONS

Maximum Operating Temperature

» Pleated glass fiber: 121°C

» Pleated PP : 82°C

Maximum Differential Pressure

» Pleated glass fiber :2.4 bar (g) at 120°C

» Pleated PP :2.4 bar (g) at 80°C

Suggested maximum Flow of water

» 20.69 inch length :660LPM

» 40.69 inch length :1300LPM

» 60.69 inch length :1900LPM

We have wide expertise and knowledge in the manufacture and export of world-class industrial filters. Specialized in application analysis.Our endeavours in this field is backed by a strong R & D support and our own vast experience in dealing with the OEM & End Customer in the various industries like Oil & Gas, Petrochemicals, Power, Steel, Chemicals, Pharmaceuticals, Fertilizers, Dyes & Intermediates, Paint & Ink, Water Treatment etc.

» Prefiltration of RO,Pretreatment of sea water desalination

» Condensate water filtration,hot water recovery in power generation

» API, solvents,and water filtration in BioPharm market

» The filtration of bottled water, high Fructose,edible oil,soft drinks,and milk

» Paints and coatings,Petrochemical,Refineries

» Microelectronics,film,fiber and resin

» Aviation Turbine Fuel, High sulfur diesel fuel ( HSD) etc.
