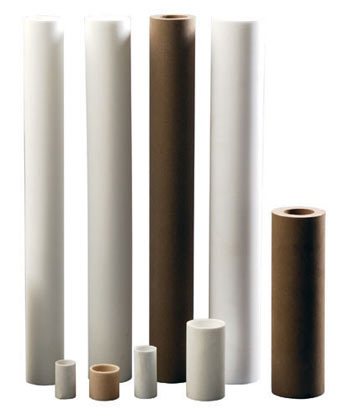

SINTERED FILTER CARTRIDGE

Filter Concept Pvt. Ltd. is one of the leading Sintered filter cartridges exporters. Sintering is a process for making articles from its base material in powder .They are made by mixing elemental or alloy powders and compacting the mixture in a die, the resultant shapes are then sintered or heated in a controlled atmosphere furnace to bond the particles. Sintering is traditionally used for manufacturing ceramic objects and after that it is used for filtration application.

Due to sintering process, particles join with each other and form a porous structure which allow any fluid , air or gas to pass through without disturbing its structure. This structure is robust in nature to handle particle above stipulated micron rating. Such elements are back washed some time for cleaning purpose to remove deposited particle load. These sintered solid filters are able to withstand very high differential pressure across the filters.

» Made of single base material, hence free from any binder
» Specific Pore size distribution due to sintering process
» Withstand very high differential pressure
» High void volume compared to conventional sintered material
» Easy to clean & back wash
» Wide chemical compatibility

Construction

» Sintered Polypropylene

» Sintered Polystyrene

» Sintered Acrylonitrile

» Sintered Ceramic

» Sintered Polyethylene

Configuration

» Double Open Type (DOE Type)

Sizes

10”, 20”,30”40” Long

Micron Rating

1, 5, 10 , 25, 50 , 100 Micron

Outer Diameter

64 mm , 70 mm

Inner Diameter

28 mm , 40 mm

We have wide expertise and knowledge in the manufacture and export of world-class industrial filters & filter consumables like Sintered filter cartridges Specialized in application analysis.Our endeavours in this field is backed by a strong R & D support and our own vast experience in dealing with the OEM & End Customer in the various industries like Oil & Gas, Petrochemicals, Power, Steel, Chemicals, Pharmaceuticals, Fertilizers, Dyes & Intermediates, Paint & Ink, Water Treatment etc.

» Compressed air filtration

» Gas filtration

» Fine Chemicals: Solvents, Process Streams, Water Purification

» Magnetic coating: Dispersions, Coating Lines, Solvents

» Petrochemicals: Water flood, Comletion Fluids, Amines

» Cosmetics: Alcohols, Essential oils , Water lines

» Water Treatment: Membrane Protection, Resin Trap

» Metal Finishing: Plating solution, paint and resin products, Wash

» Electronics: Electroplating, Etching, Image development
